Tungsten Grinding Mill

Posted at: March 14, 2012

Tungsten is an component of the wider distribution of virtually a myriad of rocks found all over, but at ‘abnormal’…

Tungsten is an component of the wider distribution of virtually a myriad of rocks found all over, but at ‘abnormal’ amounts. To become enriched with the relevant geological deposits could be formed being a commodity ore mining.It is widely used in aerospace, nuclear, marine, automotive industry, electrical industry, electronic industry, chemical industry and other areas.

Tungsten ore grinding mills

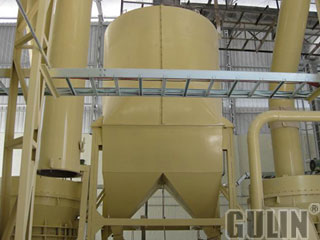

Tungsten Grinding Mill

Tungsten Grinding Mill

Gulin® Tungsten ore grinding mills include large scale ball mill, SCM grinding mill, MTM grinding mill, complete tungsten powder production line. widely used in mining, chemical industry, metallurgy, building materials, coal, refractories as well as other industries.

Ball mill is the main tungsten ore grinding machine, used for grinding tungsten ore into powder. These ground tungsten ore powder are concentrated by a flotation process which separates the grains of ore mineral from the waste material, or gangue.

SAG mill is a another widely used tungsten ore grinding machine. Semi-Autogenous Grinding mill utilizes steel balls in addition to large rocks for grinding. It has a large diameter and short length. It rotates, tumbling its contents, causing a breaking action. The mill chute is continuously fresh ore and crushed until it is small enough to pass through the discharge grates.

Rod mill is also common tungsten ore milling machine, used to grind material into fine powder. Using long steel rods instead of balls as the grinding medium, Rod mills are typically used for grinding ores, coal/coke, and other materials for both wet and dry applications. In general, rod mills create a coarser product than do ball mills. Rod mill speed is typically slower than a ball mill.

Tungsten milling machine features:

  • Noise and vibration;
  • Pressure, powder and much more;
  • The grinding ring and roller wear uniform, long life is 3-5 times the conventional Raymond;
  • Suited to processing hard materials;
  • The powder within the iron submissions are low;
  • Continuous operation, during operation has no effect on the oiling roller bearing chamber;
  • Power consumption, best quality, easy installation and maintenance;
  • No blade in the feed mill, the failure rate is low.

Tungsten ore powder production line

The ore is first crushed and milled to liberate the tungsten mineral crystals. Scheelite ore can be concentrated by gravimetric methods, often combined with froth flotation, whilst wolframite ore can be concentrated by gravity (spirals, cones, tables), sometimes in combination with magnetic separation. Due to its extremely high melting point, tungsten mill products (sheet, rod, wire, pins) are fabricated from powder and not through melting and casting.

The tungsten powder is pressed into parts, sintered (consolidated) and worked (rolled, forged, swaged, or wire drawn) to the desired form. This technology, called Powder Metallurgy, was adopted from ceramics and used at first for mass production of tungsten filaments at the dawn of the 20th century.
