250TPH – 300 TPH stone crushing & screening plant

Posted at: April 9, 2013 [ 4.8 - 6158 Ratings ]

Gulin Machinery has designed this widely used 250TPH – 300 TPH stone crushing & screening plant with complete stationary, portable,…

Gulin Machinery has designed this widely used 250TPH – 300 TPH stone crushing & screening plant with complete stationary, portable, mobile equipment. This type stone crushing plant is suitable for crushing all kind of rocks, stones, metallic minerals, recycling construction waste and so on.

250TPH - 300 TPH stone crushing & screening plant

The production capacity of this one nuit stone crushing plant can achieve 250TPH -300TPH. The features are: high efficiency, low cost, high quality products, low energy consumption and so on.

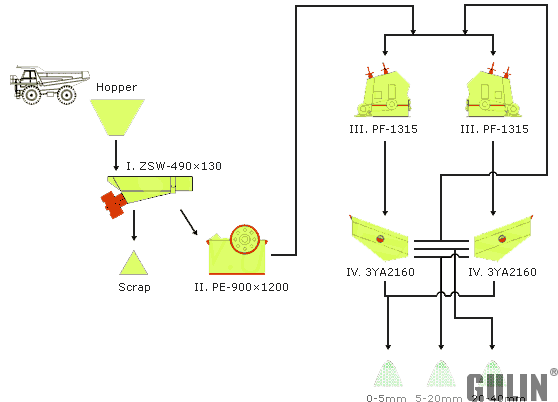

Stone crushing plant Flow chart:

250TPH - 300 TPH stone crushing & screening plant

Gulin 250TPH – 300 TPH stone crushing & screening plant is our small and medium scale crusher plant. It is mainly consist of ZSW-490×130 Vibrating Feeder, PE-900×1200 Jaw crusher, PF1315 Impact crusher, and 3YA2160 Vibrating screen. Gulin can design the stone crushing plant flow chart according to the raw materials. Gulin can also offer other different capacity stone crushing screening plant for sale with best price.

Plant crushing stages:

NO. Equipment Model Motor(KW) Number
Hopper LC3000X4000 1
I Vibrating Feeder ZSW-490×130 22 1
II Jaw crusher PE-900×1200 110 1
III Impact crusher PF1315 180 1
Vibrating screen 3YA2160 30 1
Total Power (KW) 552
