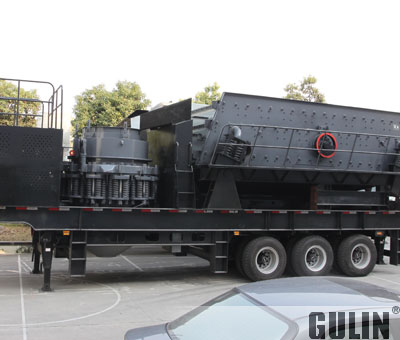

The Mobile Cone Crusher (plants) has excellent mobility, it can move to anywhere with the change of raw material places or the construction places and start to work without building any foundation. Also it is easy to match with other equipments, meeting the different product requirements of different customers.
Application
Both in rock stone crushing and mineral ore crushing industry, mobile crusher is becoming more and more popular. The mobile cone crusher will process concrete, kerbstone, marble, paving slabs, bricks, tiles, blocks, stone, porcelain, flint, gravestones, etc, under any condition and meet the requirements from our customers.
Features
- Equipped with efficient cone crusher, it has excellent crushing performance.
- Optimized crushing cavity can significantly increase crushing ratio and output.
- It features great production capacity, high reliability, easy maintenance, which greatly reduced the production costs.
- Easy to adapt and flexible to collocate with other machine.
Technical Data
| Model | Car Body | Vibrating Screen | Crusher | Belt Conveyor (standard configuration) | Engine (Optional) | Overall dimension (mm) | |||
| Model | Feeding Size (mm) | Power (kW) | Model | Feeding Size (mm) | Size(m) | Power (kW) | |||
| Y3S1848CS75 | Two-Spindle | 3YK1848 | ≤400 | 4-18.5 | 36(3′) | 6-75 | B800×7.5 | 200 | 13050×2830×4350 |
| Y3S1860CS160 | Three-Spindle | 3YK1860 | ≤400 | 4-22 | 51(4.25′) | 6-160/185 | B800×8.5 | 500 | 14300×2830×4380 |
| Y3S1860HP220 | Three-Spindle | 3YK1860 | ≤400 | 4-22 | HPC220 | 4-220 | B800×8.5 | 550 | 14300×2830×4380 |
| Y3S2160HP220 | Three-Spindle | 3YK2160 | ≤400 | 4-30 | HPC220 | 4-220 | B1000×8.5 | 550 | 14300×3150×4380 |
