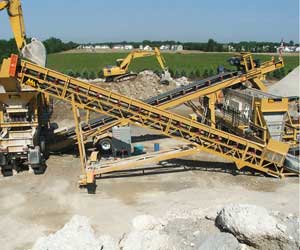

Aggregate crushing plant
Aggregate crushing plant
Aggregate crushing plants are used to process sand, gravel and rock for specific markets. Emission units included in the aggregate crushing plant category are washers, screens, and classifiers to segregate particle sizes; crushers to reduce oversized material; and storage and loading facilities.
The Big materials are fed to the jaw crusher evenly and gradually by vibrating feeder through a hopper for the primary crushing. After first crushing, the material will transferred to impact crusher or cone crusher by belt conveyor for secondary crush; the crushed materials will then transferred to vibrating screen for separating. After being separated, the parts that can meet standard will be taken away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit. Size of final products can be combined and graded according to customer’s specific requirement. We can also equip dust catcher system to protect environment.
Aggregate crushing plant: 100-120T/H
Main Components:
Vibrating Feeder ZSW 380 X95
Max Feeding Size: ≤500mm
Power: 11 kw
Jaw Crusher PE-600 X 900
Max Feeding Size: ≤500mm
Power: 75kw
Impact Crusher PF-1214
Max Feeding Size: ≤350mm
Power: 132kw
Vibrating Screen 3YK1848
Sep1=40mm Sep2=20mm Sep3=5mm
Power: 18.5kw
Construction aggregate crushing plant design
Our construction aggregate crushing plant designs are based on meeting our customer’s needs and not based on trying to unload inventory. Our unique experience as operations managers provides us with the insight to focus on the best solution for your operations. For each specific application we consider:
- The long term operating cost;
- Product yield;
- Production capacity;
- Product mix flexibility;
- Ease of operation;
- Ease of repair and maintenance.
Our engineers utilize the latest CAD software to provide general arrangement drawings, flow diagrams, erection drawings, concrete foundation design, and electrical schematics. We also utilize many software packages including AggFlow to help develop the optimal plant design for your needs.
Crushed stone aggregate is produced from many natural deposits including: limestone, granite, trap rock, basalt, marble, cobble stone, grit stone, river stone and other durable mineral resources.
Highway aggregate crushing process
Asphalt concrete pavement is used in either SMA or Superpave Pavement Technology，the shape and rank of aggregate has been brought up a very high demand. Especially to the content of needle plate type in the basalt, the former ghana impact crusher processing chart cannot meet the requirement any longer. Therefore, our company puts up the newest crushing and screening processing chart-VI series of Vertical Shaft Impact Crusher to meet the need. The high-quality aggregate produced by this production line is widely used in road surface of many highways.
