Gulin sand making machine

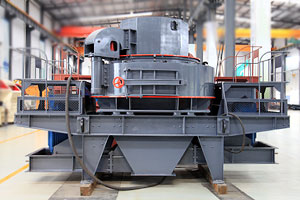

Sand making machine for sale India
Application area: mining, building, road, dam
Processing stage: final crushing and sand making
Crushing material: limestone, gypsum, talcum, calcite, bauxite, etc. (< Moh’s hardness 8)
Crushing ratio: 2-3
Main components: body frame, impeller, impact plate
Working principle: the entering material will be divided by the distributing plate into two parts; one part will enter the impeller and thrown out at very high speed, while the other part will fall around the impeller to be hit by the first part of thrown out material. Thus the materials get crushed.
Protection type: automatic alarm
Quick wear parts: high manganese steel
Gulin sand making machine is newly researched equipment, with international advanced level. Technology and modern processing equipment make it a leading role in this industry. Our sand making machine is used for producing concrete, building aggregate, aggregate for road surface and roadbed, asphalt concrete and cement concrete.
Sand making plant for sale India
Sand making plant consists of vibrating feeder, jaw crusher, vertical shaft impact crusher (sand making machine), vibrating screen, sand washing machine, belt conveyor and centrally electric controlling system, etc. The designed capacity is from 50t/h to 500t/h. After many years’ research, our company has developed an internationally advanced vertical shaft impact crusher, which can be used together with other machinery as a complete sand making flow. This design racks a leading role in the same industry.
Why choose Gulin sand making plant
As a professional manufacturer of sand making equipment, Gulin also provide the most professional design of sand making plant. Until mow, Gulin have designed sand process for thousands of clients from more than 60 countries and serviced for field of sand making and sand shaping for more than ten years.
Sand making machine specification
| Model | Max. feeding (mm) | Power (kw) | Impeller speed (r/min) | Output (t/h) | Outer dimension: L×W×H (mm) | Weight (t) |
|---|---|---|---|---|---|---|
| PCL-600 | 30 | 2×30 | 2000-3000 | 12-30 | 3000×1500×2050 | 5.6 |
| PCL-750 | 35 | 2×45 | 1500-2500 | 25-55 | 3300×1800×2440 | 7.3 |
| PCL-900 | 40 | 2×55 | 1200-2000 | 55-100 | 3600×2140×2620 | 12.1 |
| PCL-900B | 40 | 2×75 | 1000-1450 | 65-130 | 3600×2140×2620 | 13.6 |
| PCL-1050 | 45 | 2×(90-110) | 1000-1700 | 100-160 | 4480×2450×3906 | 16.9 |
| PCL-1250 | 45 | 2×(132-180) | 850-1450 | 160-300 | 4520×2640×3100 | 22 |
| PCL-1350 | 50 | 2×(180-220) | 800-1193 | 200-360 | 5340×2940×3650 | 2 |
Note: This specification is just reference, any changes are subject to the sand making machine products.
