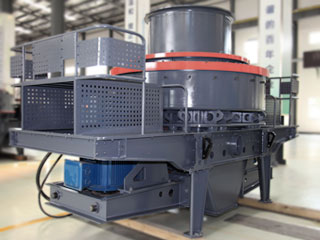

Gulin VSI5X crusher is widely used in metal and nonmetal mine, concrete, fireproof material, abrasive filler, frit, construction aggregate, sand, metallurgy, etc.. It has become the core equipment in sand making business. VSI5x crusher integrate three crushing types, it’s feeding style incorporates material on material, material on iron, and falling at sides. Customers can adjust the machines according to their own demand.
Application of Vsi5x crusher
VSI5x series crusher is widely applied in industries like cement making, refractory making, glass raw materials making, aggregates making, sand making, metallurgical industry, etc.
- VSI5x crusher for artifical sand making line: In the artificial sand making plant, VSI5x is the main manufacturer sand making machine. The main is the cubic shape of the final products.
- VSI5x crusher for silica sand plant: In the silica sand making plant, vsi5x crusher is used to crush quartz sandstone and other rocks into sand particles.
Features and Benefits
- Optimized deep-cavity rotor;
- Assembled hammer reduces the cost by more than 30%;
- The core wear resistant material adopts the American high-standard wear resistant material;
- Adopting the lozenge impact plate;
- Convertible distributor simplifies the operation;
- Adopt high protection standard motor.
Feed at center:
Materials fall into the hopper and then through the feeding opening in the center enter the high speed rotor which will throw out the materials with high speed. Materials firstly strike those materials that are free falling down. Then, materials strike the materials-liner in the vortex or the impact liner and are rebounded to the top of crushing chamber and then fall down. After that, the falling materials with materials shot from the impeller form a continuous materials curtain. Ultimately, crushed materials will be charged from the discharging opening.
Feed both in the center and from sides:
The materials fall into the hopper and the circle hole and then will be divided into two parts by the distributing plate. One part of materials cross the distributing plate and enter the high speed impeller and then is accelerated and thrown out .The other part falls down from the sides of distributor. Materials firstly strike the free falling down materials. Then, materials strike the materials-liner in the vortex or the impact liner and are rebounded to the top of crushing cavity and then fall down. The falling materials with materials shot from the impeller form a continuous curtain of materials. At last, crushed materials will be discharged from the discharging opening.
VSI5x Crushing Equipment Specification
|Capacity (t/h)||Feed Both at Center and Sides||150~280||240~380||350~540||500~640|
|Feed at Center||70~140||120~200||180~280||250~360|
|Max Feed Size (mm)||Soft Material||<35||<40||<45||<50|
|Rotation Speed (r/min)||1700~1900||1500~1700||1300~1510||1100~1310|
|Double Motor Power (kW)||110~150||180~220||260~320||400~440|
|Overall Dimension L*W*H (mm)||4100*2330*2300||4140*2500*2700||4560*2600*2900||5100*2790*3320|
|Lubrication and Hydraulic Station||Double Motor Power||2X0.31kW|
|Safety Assurance||Double oil pumps assure enough oil supply, automatic switch off with no oil stream or hydraulic strength, lower the temprature with cool waterin summer, raise the tamprature with motor in winter.|
|Power of Oil Tank Heater||2kW|
|Overall Dimension L*W*H (mm)||820*520*1270|
Note: This specification is just reference, any changes are subject to the VSI5x Crusher products.
